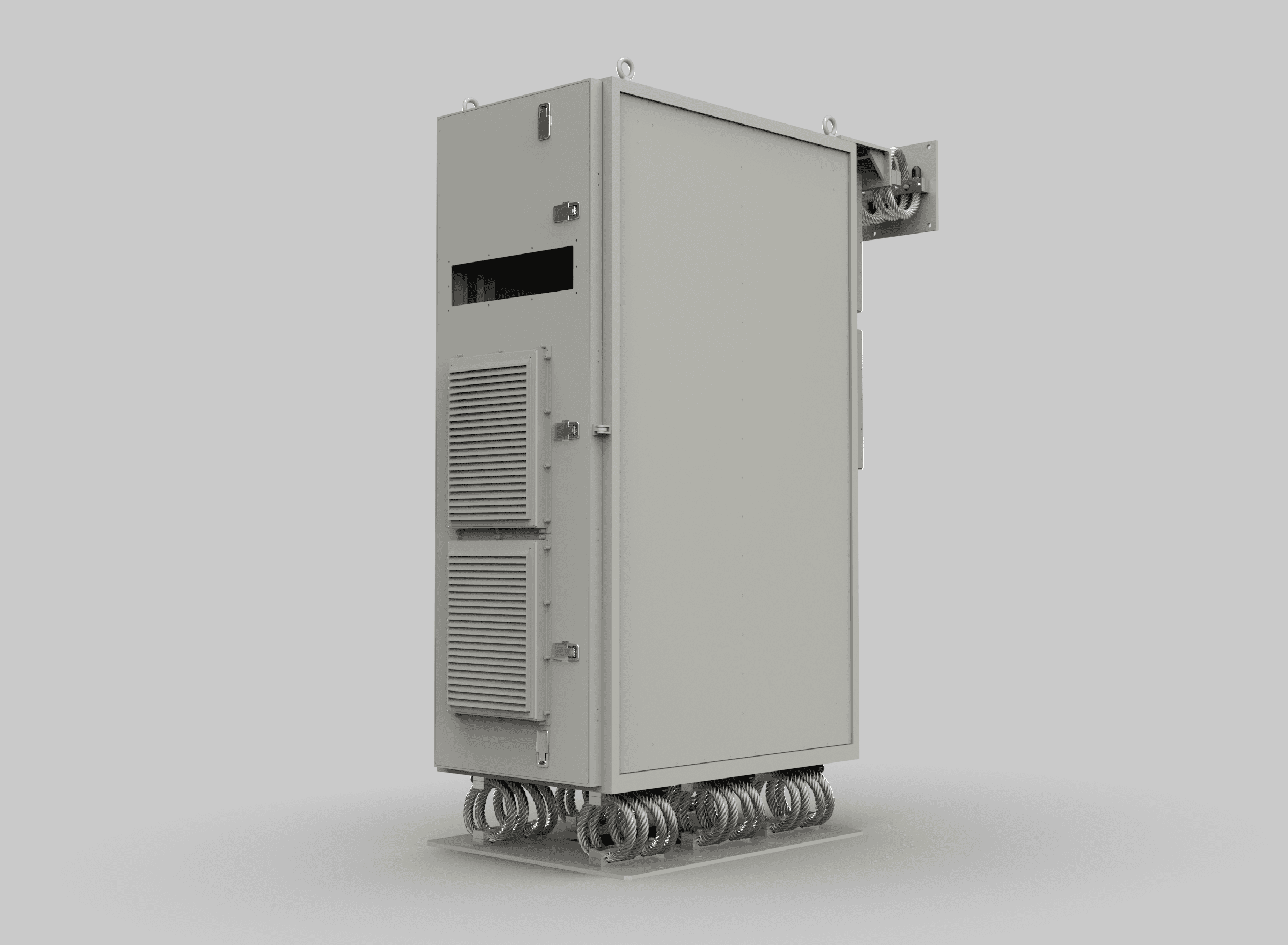

ELECTROMET 960 SERIES
Rugged and Reliable — The Light/Medium Duty “960” Enclosure (payloads up to 1,500 lbs) is based on a modular approach and consist of uniform construction using extruded aluminum sections and rails and a wide assortment of outer panels and razorbacks.

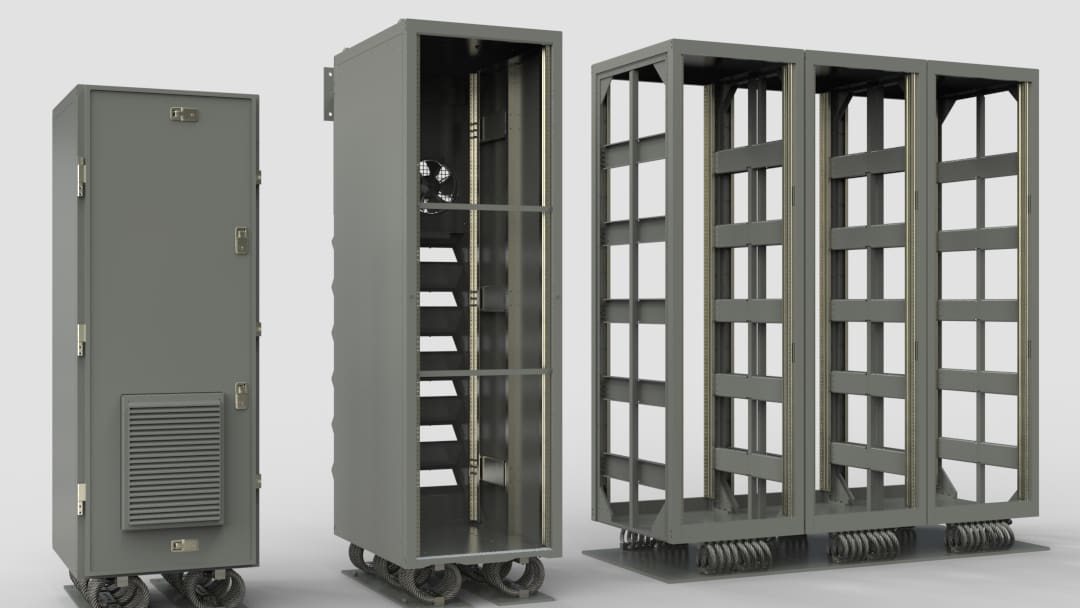

Various configurations are available so that enclosures can be used for open or closed rack installations. All parts are interchangeable with multiple options available without extensive redesign.
Qualified to MIL-S-901E (Shock) and MIL-STD-167 (Vibration) as “Hard Mounted” (W/O isolation systems)
Infinite adjustment of electronic equipment positioning using standard 19” EIA hole spacing via front mounting rails
Optional EIA rails at the rear and additional intermediate EIA rails with flexible front-to-back positioning available
Bolt-together construction, featuring high strength alloy steel bolts
Hatchable (easily disassembled to fit through Navy hatches & doors)
Sealed lifting eye bolt threaded holes, even with lifting eyes removed
Front and rear doors with shock pins
Single bay and multi-bay configurations
Razorbacks and side/rear panels
Size up to 75″ High, 36″ Deep and 22.31″ Wide (960) or 22.875″ Wide (CY)
Payload: “960” Enclosure
Up to 300 lbs. as open rack
300-450 lbs. with side/rear panels
450-1,500 lbs. with side/rear panels, center frame support & isolation system
Meets or exceeds:
Seismic Zone 4 per GR-63-CORE
Transportation per MIL-STD-810
Drip Proof per MIL-STD-108
EMI/RFI per MIL-STD-461
